TabTimer Careousel ADVANCE Automatic Pill Dispenser

The Pivotell Advance Automatic Pill Dispenser has 28 useable sections for medication, and will present only the right dose at the right time with all other medication locked in the dispenser.

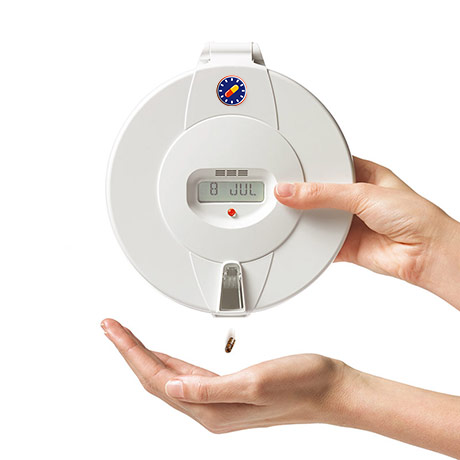

At the alarm time the tray rotates to present a compartment of medication, the alarm sounds and the light will flash. The user should tip the pills out, which cancels the alarm.

The alarm can be programmed to ring for up to 5 hours. With 28 sections, and a possible 24 alarms per day, the Pivotell Advance automatic pill dispenser can accomodate the most complicated of medication regimes.

Refill times:

• 1 dose per day - refill every 28 days

• 2 doses per day - refill every 14 days

• 4 doses per day - refill every 7 days

• 8 doses per day - refill every 3 days

• 12 doses per day - refill every 2 days

The Pivotell Advance medication dispenser incorporates a number of important and advanced features which are designed to help both the user remain compliant with their medication regime and further support their family members, carers and pharmacists.

Security - a self-locking shutter over the lid opening prevents access to the medication tray except at the alarm time. This prevents the possibility of double dosing or the forced movement of the medication tray by the user.

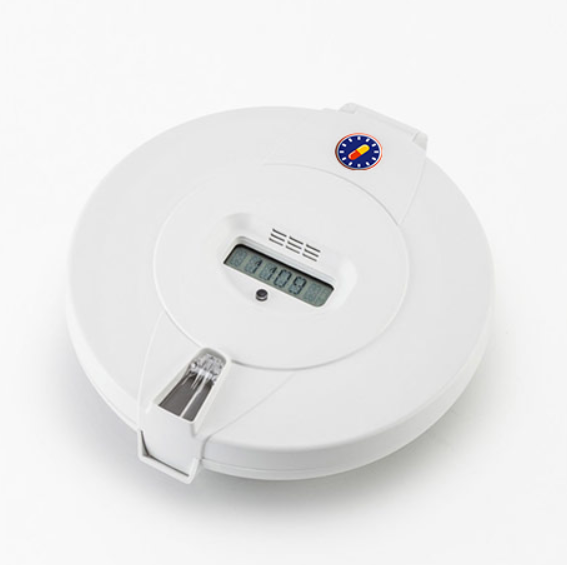

Display - the LCD display is visible though the lid.

Start Delay and Stop functions - Delays activation or deactivates dispenser - useful for those using multiple dispensers and to allow pharmacists or family members to fill in advance away from home.

Upside-down feature - the tray will not rotate if upside down. When upright it will move to the correct dose for the time & date at the next alarm time. This also allows for the possibility that the dispenser could be transported upside down. If a dosage time occurs when the dispenser is upside down it will alarm as usual but the tray will not move forward. If the dispenser is upside down for some time the dispenser will record on how many occasions it should have rotated and when returned to the upright position will move to the correct position for the next scheduled dose so that the correct medication for that time will be presented.

Main Features

The Pivotell® Advance Dispenser has many advanced features including:

• Security - a self-locking shutter over the lid opening prevents access to the medication tray except at the time that medication is programmed to be available. This prevents the possibility of double dosing or the forced movement of the medication tray by the user.

• Display - the LCD display will be visible though the lid allowing the user and carer to view: the date and time, the time that the next dose is due, the number of doses remaining, the battery level.

• Batteries - It will be possible to use both Alkaline AA and re-chargeable batteries.

• Upside Down - if a dosage time occurs when the dispenser is upside down it will alarm as normal but the tray will not move forward. Then when it is returned upright it will move to the correct position for that time of day.

• Daily Alarm Times - 1-24.

• Compartments - 28.

• Dual/Multi Dose Dispensing - Two or more compartments can be programmed to alarm at the same time (for those with many or large pills).

• Start delay function - delays activation to allow pharmacists or family members to easily fill in advance away from the user's home.

• Stop function - deactivates dispenser - useful for those using multiple dispensers in the home.

• A Pharmacy label carrier and label case is supplied (to comply with pharmacy labelling requirements).

• Day / time discs supplied (for 1 / 2 / 3 / 4 times daily dosage and one blank disc for five or more doses per day).

• Battery life - up to 6-12 months.

• Battery level meter and warning indicator.

• Secure battery case cover - to deter tampering (screw provided)

• Spare trays, lids and time discs available (optional accessories) for off-site filling by family members or pharmacists.

• Four different alarm sounds.

• Flashing light - for those with hearing impairment.

• Lockable - only the medication due can be accessed by the user.

The LCD Screen

The LCD display feature is of particular benefit to carers / family members who can make a visual check on the status of the dispenser without having to open it, allowing the user and carer to view:

• the date and time
• the time that the next dose is due
• number of doses remaining
• the battery level

When horizontal the display will show the Date and the Time in sequence. At the Alarm Time the display will show 'Take Med'. When tilted forward the display will show in sequence (dates and times etc shown here are examples):

• NEXT DOSE 16:30 MON || DOSES LEFT 9 || B (battery level) 75% || DATE: 23 SEPT 2022

• When only 4 doses remain the display will additionally show DOS 04. After this dose has been dispensed DOS 03, DOS 02, DOS 01 and finally DOS 00 will be displayed in sequence with the DATE and CLOCK

• When the battery capacity is less than 20%, LOWBATT will be displayed in sequence with the DATE and CLOCK

Other data:

• Dimensions: Length 190mm Width 180mm Height 56mm.

• Weight: 390g excl. batteries 490g incl. batteries.

• Compartment Size: Approx 10ml per compartment.

• Power supply: 6V 4 x 1.5V Alkaline batteries, or 4 x 1.2v rechargeable NiMH batteries.

• Battery life: up to 6mths > 1 year.

• Compartments: 28.

• Maximum daily alarms: 24

• The Pivotell® Advance dispenser is the same diameter and slightly deeper than the existing Pivotell® Mk 3/11 Dispenser.

• Pivotell Advance and Mk3/11 automatic pill dispenser plastics incorporate an antibacterial silver ion technology to provide protection against harmful microbes such as bacteria and viruses.

PLEASE NOTE: The lock has a tamper resistant feature, if the lock is over turned backwards and forwards, the wrong way, or someone attempts to break into the device, the lock WILL break. We cannot repair the lock if it is broken. A replacement device will be necessary. Breaking the lock will be caused by incorrect operation of the lock. THE LOCK IS NOT COVERED BY ANY REPLACEMENT WARRANTY. Please take care with the lock.
